P-51B Mustang
Yet another (4th to be precise) release of the 1:72 Mustang from Arma Hobby. This time with focus on American P-51B machines. Let's take a closer look.
Disclaimer
The review sample was kindly provided by the manufacturer. Thanks, Arma Hobby.
The box
Despite the distinctive box design, with its dark blue stripe over a quite lovely front illustration, the kit with catalogue number 70041 is not an “Expert Set”. This is because the manufacturer has discontinued issuing models in two main lines (“Model Kit” and “Expert Set”) – now we have one, something in between.
Which is clearly reflected by the box contents. No PE parts (present in the “experts”), but there are self-adhesive masks (absent in previous “model kits” aka “juniors”). Then there are the plastic sprues (two grey and one transparent), decal sheet and instruction manual.
Obviously, the kit is based on plastic familiar from AH's previously released P-51 kits, which were also reviewed here.
Plastic
Starting with the fuselage, which in its two-piece form occupies the largest sprue of the kit.
The clearly defined grid of delicate, recessed panel lines makes a very good first impression, which is slightly spoiled by the manufacturer's approach to the riveting. Details of this nature can be found only in selected areas of the model and there is only a handful of them on the fuselage.
Lots more access panels pins and details of this type, quite fine by the way, most of which have gathered in the engine cowling area. Sharp inspection panels, visible in somewhat problematic areas, also draw attention.
Some shortcomings are also present, like the not connected panel lines just behind the wing-fuselage fairing. On both sides.
There is some unnecessary asymmetry as well – look at the bottom air intake cover, where on one side there is a panel line, but on the other isn’t.
To discuss other imperfections, one must first take a look at the interior of the fuselage, which is by no means empty.
The internal structure is indicated in the tailwheel bay area.
Additional fragment is modelled together with the bay covers (parts 23 and 24). The wheel itself (25), moulded with the strut, looks quite nice.
Cockpit area features a fuselage structure extending into the radio compartment and equipment details reproduced directly on the inner surfaces.
On the left side those are supplemented by a module containing such things as trim controls and landing gear release levers (4), and a tiny engine control panel with levers (6).
On the right side only the oxygen installation (3) is attached separately, as there are more details reproduced directly on the fuselage part.
Which unfortunately leads to minor sinkmarks, also visible on the external surface.
This problem occurs only on one side of the body. On the left half (where there is far less detail inside) the flaws are absent.
Vertical stabilizer, designed as a whole with the rudder, comes in two versions, but this time we will only use one of them. The one on the left (part number 19). By the way, look at those delicate, raised rivets in the lower part of this element – keeping that intact will be quite a challenge, due to the proximity of the inlet channel.
The matter of the horizontal stabiliser is similar – two versions, this time we will only use the one without the aerodynamic fin. The elevator balance lines, especially in comparison with the vertical stabiliser ones, raise some eyebrows.
One of the signs of fuselage versatility are the openings in the front section.

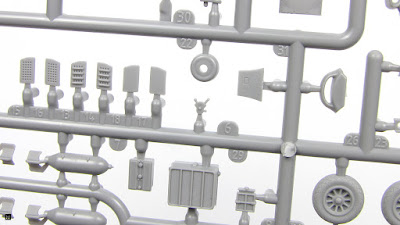

The correct panels should be glued into them, matching the particular machine. On the frames you will find three variants (13-18), but according to the instructions, in this edition (ie, using the box decals) only one of them should be taken into account (15,16).
Some of the painting options provided also require the oil breathing exit hole to be drilled – two possible positions are marked on the inside of the fuselage left half (one a little more, the other a little less).
The selected markings will also determine the engine exhausts used. We get two variants in the set, both of which will look better with drilled ends.
Cockpit is supported by a pretty nice looking floor. What's interesting is that the underside of the part features not only ejector pins marks, but also some details visible in the finished miniature through the landing gear bay.
Pilot's seat comes in two versions, but all painting options available require use of the one-piece Schick-Johnson type (1).
Mounted on a frame with armour plate (9, 10).
The control stick (30), which looks quite good in its plastic form, will also come in handy.
Meanwhile the instrument panel causes some mixed feelings. On the one hand, the surface details are very nice; on the other, the central area has been reproduced as raised, while it is actually located deeper than the surrounding surface.
If you are O.K. with that, you can insert the panel into the cover (6) – pins and slots on both parts will ensure that it is seated correctly.
The rectangular socket at the back of the board is intended for the part with rudder controls (4), which draws attention with a small North American Aviation logo and the inscription "DEPRESS PEDAL TO RELEASE PARKING BRAKE", or at least something quite similar.
Space behind the pilot's seat won’t be empty – additional fuel tank (12) should be installed there, supplemented by an indicator (13).
Radio equipment rack (14) goes just above it.
Selection and assembly of the proper gear shouldn’t cause any headaches this time. This is because, according to the instructions, there is only one configuration involved, which doesn’t even use all the components available on the sprues (only parts 7, 8, 15).
The issue of dorsal antennas is similar – only two (out of three) come into play (33, 34), with the majority of the proposed machines not even having those.
Before closing the fuselage, the underside air intake and oil cooler need to be addressed. In this case, the inlet ceiling is left unchanged.
The radiator (29) looks very nice, at least from one side (according to the instructions that's the rear). Less so is the gaping front end, especially as the photo-etched sheet is not included this time (the earlier “experts” featured a PE mesh designed for this spot).
Only after gluing the bottom part (30), the whole thing can be enclosed in the fuselage.
Then at least partially obstructed with suitable flaps (31, 32).
Front of the inlet is supplied as a separate piece (27). The same goes for the carburettor intake opening (36), located under the propeller.
Propeller which you get in one-piece form, so you won't have to worry about the correct positioning of the blades.
At the back, you will find the tabs that correspond with the slots at the base of the spinner (20).
Spinner, which also has adequate features.
The propeller's rotation is to be ensured by a small component (22) which should be mounted without glue.
Let's move on to the wing which is divided into two parts. The upper surfaces feature, just like the fuselage, fine panel lines, some rivets and other recessed details.
The bottom surfaces look similar, except that there is far more rivets here.
Particularly in the middle section, where an attempt has been made to show the worn down, corrugated plating, which doesn't quite convince me.
It looks better on the flaps, made as separate parts, where you can see both recessed and raised rivets.
I don't like at all how the position and signal lights (the three on the underside of the wing) have been reproduced. Transparent elements would be much more appropriate here.
Some mixed feelings are caused by the ceiling of the main landing gear bay, moulded on the inside of the upper half of the wing. On the one hand very nice, delicate, raised rivets. On the other, you can see traces left around the holes (and not only here), probably by milling cutter.
The bay will be built using several other parts (26, 27, 28, 29), also nicely riveted.
Similar treatment was given to the bay inner covers, at least on one side.
Outer ones on the other hand are far less interesting.
Just like the landing gears struts.
On which of course the wheels will be placed – which at first glance looks very nice, although it is a pity that there is only one version. It gets worse when you start looking at them more closely. The fact that the inscriptions (“GoodYear”) on one of the wheels are a mirror image is a detail that is not easy to see anyway.
A more serious problem is the tyre tread with mismatched lines in the middle.
As a consolation, there is a relatively wide range of available loadout, mounted on the underwing pylons.

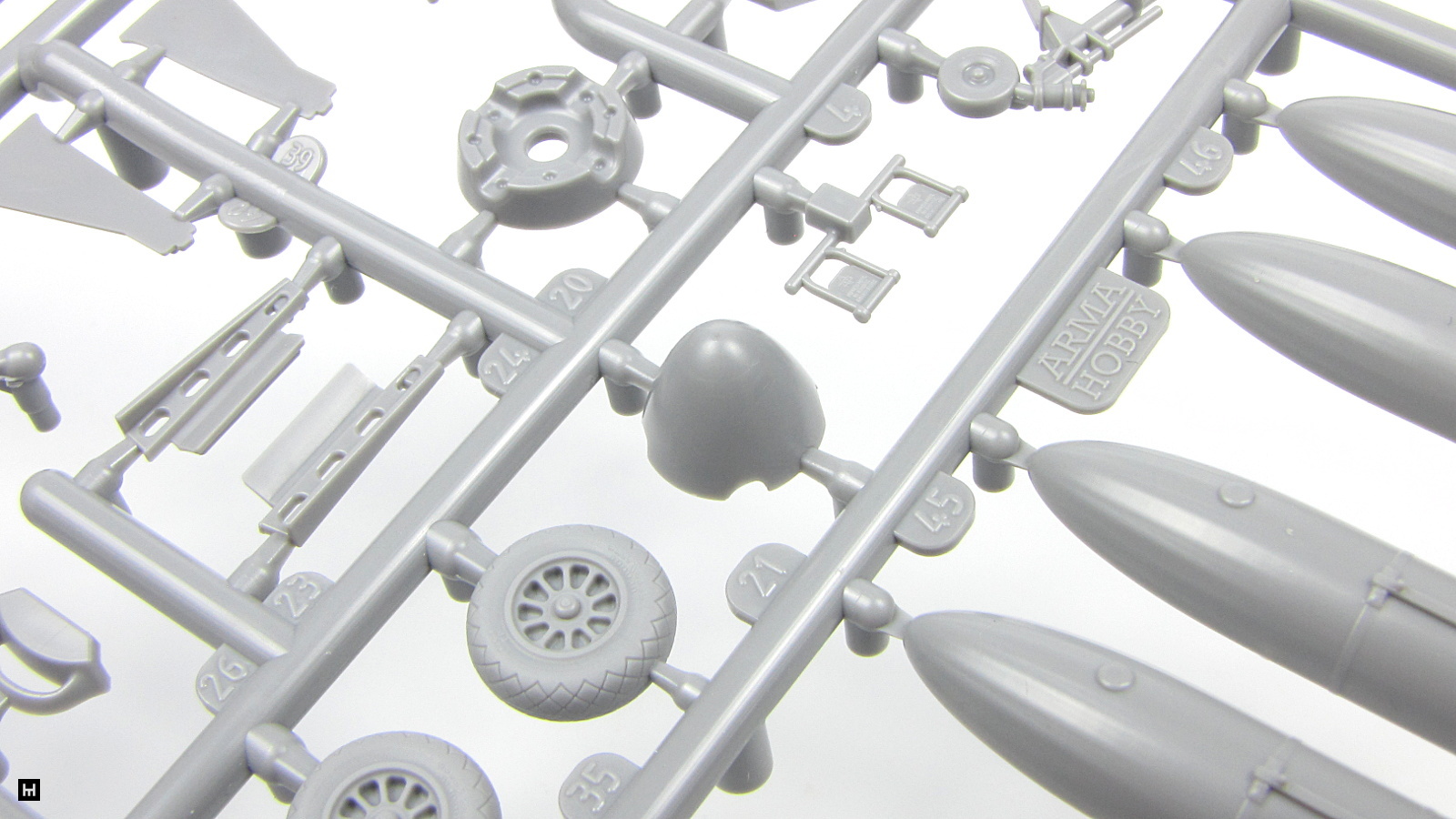

Two types of additional fuel tanks.
And 250lb bombs.
While on the subject of armament, the wing guns with barrels designed as one-piece modules (25) should also be mentioned. On the inner surface of the wing's lower part there are suitable slots for them.
A few minor details remained, such as the Pitot tube (30) mounted under the right wing, or the rails for the sliding part of the cockpit cover (37, 38), which must be trimmed if a closed configuration is chosen.
And while we're on the subject of canopy…
Transparencies
Transparent elements are on the third, smallest, plastic sprue of the set, dominated by the cockpit glazing. The windscreen has been designed with a section of fuselage in front of it, which should make it easier to cleanly glue it into place.
The moveable section is available in several variants. Early type in closed position.
The same, but opened, where the tilted upper segment was merged with the side window.
And the Malcolm type, in two versions – depending on whether you want to have the cover in the open or closed position.
There are also side windows with a thin border (which does not change the fact that you have to be very careful when sticking them in).
And some smaller details, such as the glass for the reflector located in the left wing's leading edge.
The multitude of available options and the protection of the sprue with an additional ziplock bag (at last) are welcome. The best thing, however, is the excellent transparency of the thin elements. It is just a pity that there was no place here for the position and signal lights.
Masks
The included small sheet of self-adhesive masks, cut in the well-known and liked Japanese yellow tape, will help us with painting the canopy and landing gear wheels.
However, the manufacturer's suggestion of scribing some lines (panel behind the exhausts on the left side of the fuselage) using a relatively soft tape does not seem to be the best idea if you ask me.
Decals
The sizeable decal sheet included in the kit was traditionally printed by the Polish Techmod, which did not disappoint.
It is hard to find any flaws here.
The colours are uniform and even the smallest details are clear.
Many of the stencils, can be easily read. This includes those for bombs and additional fuel tanks, which are also provided.
There are also flight instruments here as well as other items for cabin interior, including markings for the radio equipment.
Everything looks really excellent. And if anyone is wondering what those white circles in the bottom right corner of the sheet are – those are for the sides of the “Old Crow” tyres.
Manual
The booklet containing tips on building the model represents a typical style of this manufacturer. Clear, contour drawings with colours indicating painting of particular surfaces.
The renderings and numerous comments can be helpful at critical points of construction.
Traditionally the table of paints needed includes numbers from Hataka (Orange Line), AK Interactive (Real Colors), Lifecolor, AMMO, Humbrol, Vallejo and Tamiya.
The paint schemes, as usual in colour, also include directions for the arrangement of the main markings.
Stencils were this time moved to a separate drawing.
Painting options
Four full-colour profiles on the back of the box quickly answer the question of markings available in the kit.
P-51B-15-NA Mustang, No. 43-248423/B6-S, “Old Crow”, pilot: Cpt. Clarence “Bud” Anderson, 363rd Fighter Squadron, 357th Fighter Group, June-July 1944.
Kit painting option (Arma Hobby)P-51B-7-NA Mustang, No. 43-6964/C3-G, “The Mighty Midget”, pilot: 1st. Lt. James H. Clark, 382nd Fighter Squadron, 363rd Fighter Group, Maupertus, France, July 1944.
Kit painting option (Arma Hobby)P-51B-10-NA Mustang, No. 42-106473/G4-N, “Geronimo”, pilot: Cpt. John Pugh, 362nd Fighter Squadron, 357th Fighter Group, June 1944.
Kit painting option (Arma Hobby)P-51B-15-NA Mustang, No. 42-106872/PE-T, “Patty Ann II”, pilot: John F. Thornell jr., 328th Fighter Squadron, 352nd Fighter Group.
Kit painting option (Arma Hobby)Browsing through the manual, one comes across a bonus – an alternative livery of the “Geronimo” machine from a slightly earlier period of service.
Admittedly, no additional markings were actually printed on the decal sheet, but hey – we have another painting option laid out.
Summary
If you're not already familiar with the little Mustang from AH, now is another chance to remedy that oversight. Because this is the same great starting point for building a miniature of the legendary fighter as the previous editions, this time served in a strictly American dressing.
Although the lack of photo-etched sheet is a bit disappointing.
